Mechanical Joint Fittings Vs Flange

This size is not in awwa c110. Mechanical compression flanged / socket tail piece, compression collars (collar couplings) * size available:

Pin On Products

Mechanical joints were originally developed for the oil and gas industry in the late 1920s but have found a preference in water works.

Mechanical joint fittings vs flange. With the flange integral to the fitting. The type of flange to be used for a piping application depends, mainly, on the required strength for the flanged joint. Mechanical joint flanges can normally

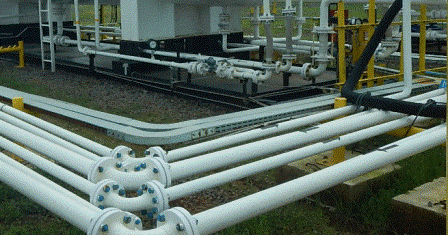

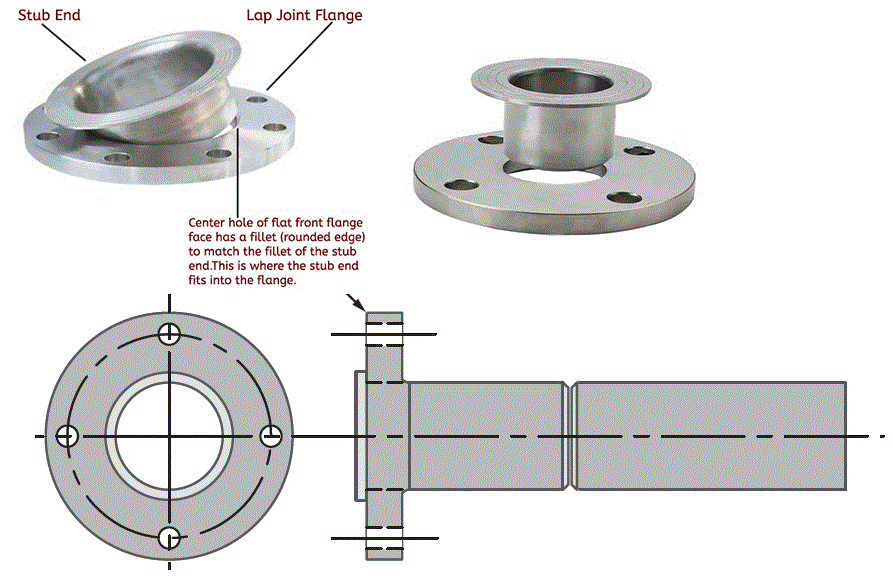

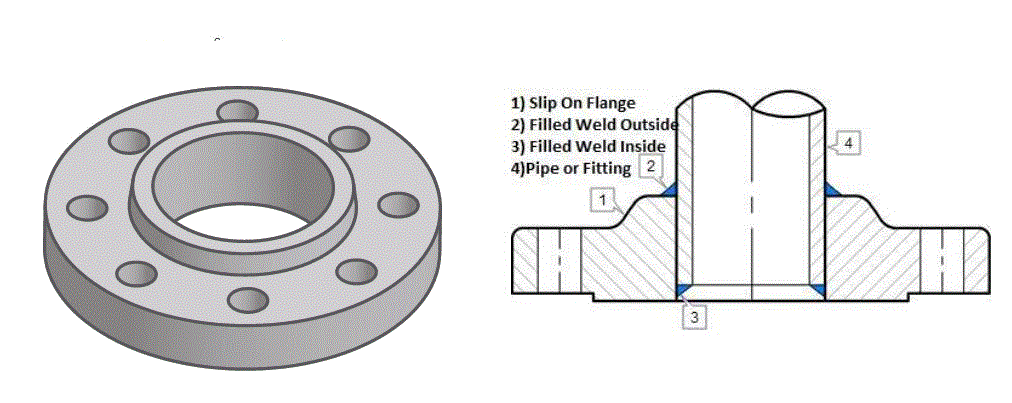

Welded outlets for ductile iron pipe. Let’s now dive in, showing the key types of flanges with pictures. Tyton joint® pipe and fittings.

Check for minimum and maximum available length. 6 in x 48 in. Ductile iron body, tapered gas.

3 xmb390 5.50 xme390 13.50 4.00 0.48 35 35 4 xmb490 6.50 xme490 14.50 4.50 0.52 55 50 6 xmb690 8.00 xme690 16.00 6.00 0.55 85 80 8 xmb890 9.00 xme890. Gaskets are made as per by construction, materials and features. Where bolt holes are required to straddle the centerline of the fitting, this must be specified by the purchaser.

Flanged fittings were developed over 100 years ago using material like hemp to seal joints together. The pipe groove is made by cold forming (roll grooving) or machining (cut grooving) a groove into the ends of a pipe. C110 ductile iron mechanical joint fittings 4 october 2020 sigma corporation www.sigmaco.com size mjxmj ductile iron mjxpe ductile iron r t mjxmj mjxpe item no.

A flange joint is a plate or ring to form a rim at the end of a pipe when fastened to the pipe. Avail our mechanical joints at market competitive rates. Flanged and mechanical joint wall pipe (cast)* (awwa c111) flange and plain end flange and flange flange and mj mj and mj plain end and mj *wall pipe can be furnished in varied lengths.

Mechanical joint pipe (mj) is primarily used in fittings and valves. Orientation of bolt holes in mechanical joint fittings with respect to any centerline* is not fixed. Mechanical joint nuts and bolts shall be corten or ductile iron, high strength, low alloy

Mechanical joint fittings 30 through 48 shall be rated for 250 psi working pressure. 50 mm to 700 mm. A cast or ductile iron gland;

The mechanical joint is based on the stuffing box principle and consists of a bell with a flange cast integrally with it; The mechanical joint is used mainly with fittings rather than pipe. American mechanical joint accessories table no.

More videos available at waterworkstraining.com.this is an explanation of a mechanical joint (mj) fitting, its uses and parts; 8 in x 13 in. Flanges are used, alternatively to welded connections, to facilitate maintenance operations (a flanged joint can be dismantled quickly and conveniently).

To assemble the joint, two grooved. Ductile iron mechanical joint fittings 3 through 24 shall be rated for 350 psi working pressure. A rubber gasket and the necessary bolts and.

Them into one fitting the flange is made of ductile iron; Mechanical joint is flexible, with the amount of deflection dependent on pipe diameter (table 2 and figure 2). (610mm) and smaller sizes may be rated for 350 psi (2,413 kpa) with the use of special (annular ring or comparable) gaskets.

Flanged ductile iron fittings in 24 inch and smaller sizes may be rated for 350 psi with the use of special gaskets. **54” mechanical joints are used only with special mechanical joint sleeves. For allowable joint deflection of mechanical joints see section 2.

Mechanical joint x swivel ductile iron c153 short body adapter. This joint creates a positive seal when the gasket is compressed against the pipe. These joints use the gland’s compression against the bell to wedge the gasket, forming a watertight seal.
